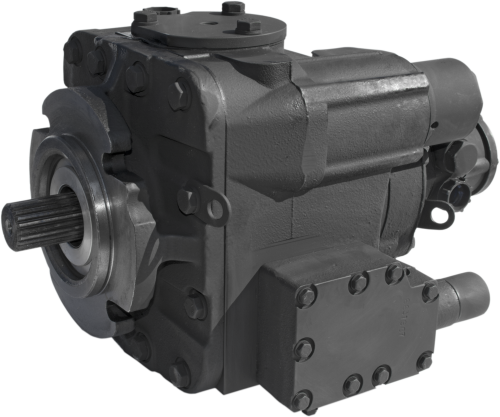

MVH series variable displacement axial piston motors
- Displacement 90, 112 cmᶟ
- Rated pressure 420 bar
- Maximum pressure 450 bar
- Efficiency High
Variable displacement axial piston motor for closed circuit hydraulic system. It is used as a part of hydrostatic transmission of mobile machines and equipment.
Applications:
- Mining equipment.
According to the technical specifications (TU), Hydrosila products are intended for operation in hydraulic systems of tractors, vehicles, agricultural machinery, and construction and road equipment. Hydrosila hydraulic components are not intended for use in aviation or military equipment, or in the chemical, medical, light, and food industries. They must not be used for pumping chemical liquids or in hydraulic systems operating with water-based fluids containing special glycols or water.
Not a dual-use product.
Variable displacement axial piston hydraulic motor provides a high shaft speed and a high torque. The design is based on Sauer 20 series. It is used as a part of hydrostatic transmissions of mining machines.
Features:
- Swashplate design.
- High hydromechanical efficiency.
- Bimetal bearing plate has a high wear-resistance.
- Lightweight piston provides reliability in operation at high speeds.
- Mounting flanges according to SAE standart.
- Tapered roller bearings enable the hydraulic motor to withstand high radial and axial loads.
- Shaft seals (lip seal or face seal) provide a reliable external tightness.
- Built-in hydraulic equipment optionally.
Control types:
- Hydromechanical.
- Hydraulic proportional.
- Electrical 3-positioned 12/24B.
- Electrical proportional 12/24B/
Hydraulic fluids: mineral and special oils with a kinematic viscosity of 30...70 mm²/s at a temperature of +50° C. Fluids must comply with DIN 51525.
| Код робочого об'єму / Displacement code | 90 | 112 | |
|---|---|---|---|
| - номінальний / nominal | см3 / ccm | 89 | 110,8 |
| - мінімальний при куті повороту похилого диска / minimum with the swashplate angle: | |||
| 7° | см3 / ccm | 33,6 | 41,8 |
| 9° | 43,4 | 53,9 | |
| 10° | 48,3 | 60,05 | |
| 11° | 53,2 | 66,2 | |
| 13° | 63,3 | 78,7 | |
| Максимальний тиск у лінії високого тиску / Maximum pressure | бар / bar | 450 | |
| Номінальний тиск у лінії високого тиску / Rated pressure | бар / bar | 420 | |
| Максимальний дренажний тиск / Maximum drain pressure | бар / bar | 2,5 | |
| Максимальний крутний момент / Maximum rotating torque | Н·м / Nm | 542 | 675 |
| Тиск керування / Pressure control: | |||
| - мінімальний / minimum | бар / bar | 17,6 | |
| - максимальний / maximum | бар / bar | 24,5 | |
| Максимальна частота обертання при мінімальному куті нахилу люльки Maximum speed at minimum swashplate angle |
хв-1 / min-1 | 3720 | |
| Мінімальна частота обертання / Minimum speed | хв-1 / min-1 | 500 | |
| Номінальна частота обертання / Rated speed | хв-1 / min-1 | 2500 | |
| Номінальна ефективна потужність / Rated power | кВт / kW | 125,6 | 156,4 |
| Маса (без робочої рідини), не більше / Weight (without fluid): | |||
| - з клапанною коробкою та гідророзподільником / with manifold valve and control valve |
кг / kg | 82,5 | |
| - без клапанної коробки / without manifold valve | 77,8 | ||
| - з клапанною коробкою та гідропропорційною системою керування / with manifold valve and hydroproportional control system |
82,5 | ||
| - з клапанною коробкою та електрогідророзподільником / with manifold and electrohydraulic control valve |
83,5 | ||
| - з клапанною коробкою та електропропорційною системою керування / with manifold and electroproportional control system |
85 | ||
